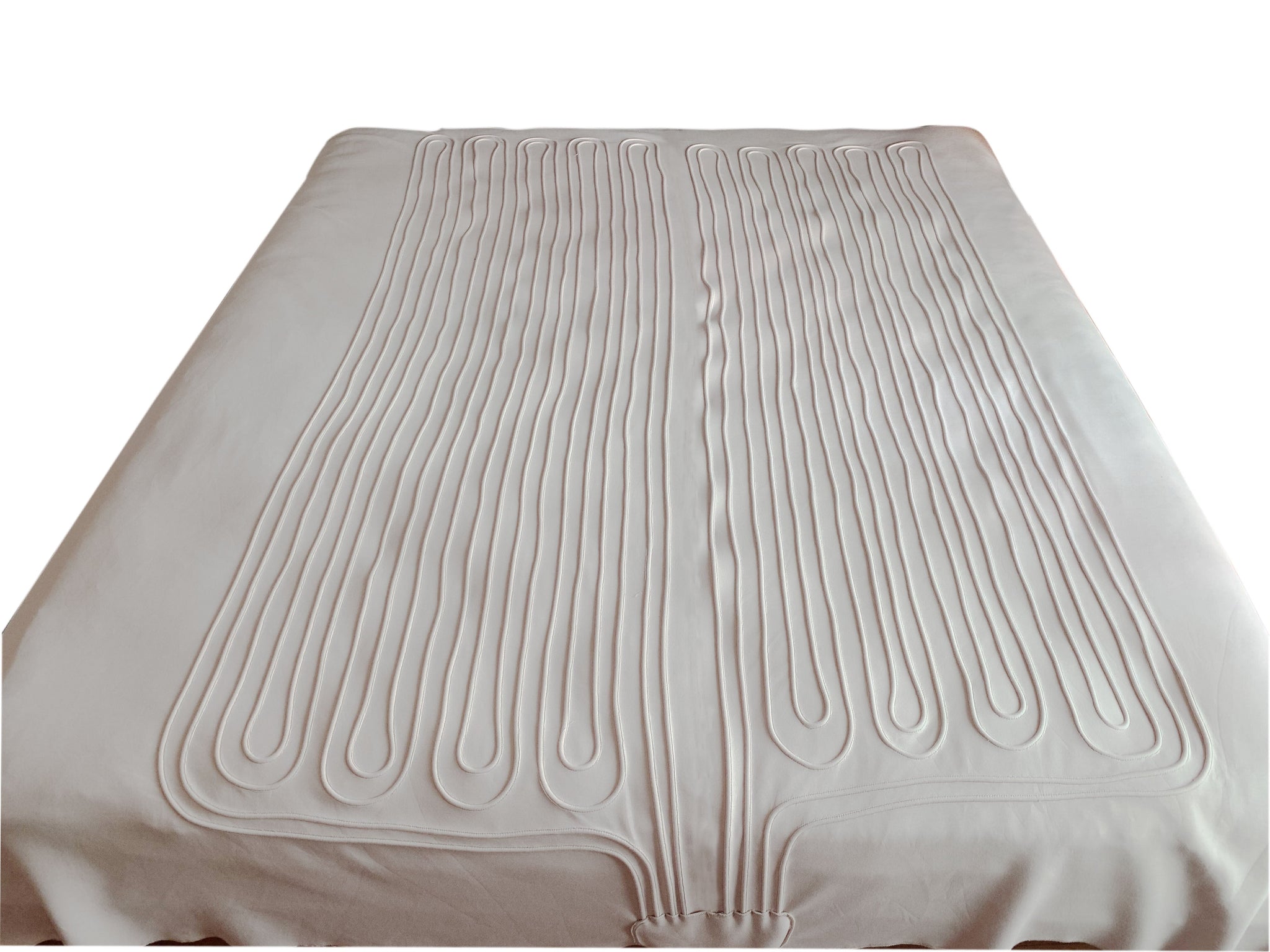

COMPCOOLER Indoor Refrigeration Cooling Blanket
 Indoor Refrigeration Cooling Blanket 400W AC
COMPCOOLER Indoor Refrigeration Chiller Cooling Pad Cooling Capacity 400W AC 220V Operated

COMPCOOLER Indoor Refrigeration Chiller Cooling Pad Cooling Capacity 400W AC 220V Operated

Regular price
¥206,900
Sale price
¥206,900
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

COMPCOOLER Indoor Stationary Chiller Cooling Pad Includes a Tubing-lined Cooling Pad Blanket and Chiller Cooling Capacity 400W AC 220V Operated

Model:

COMP-IRCS-220400-CP-XXXX  (AC220)

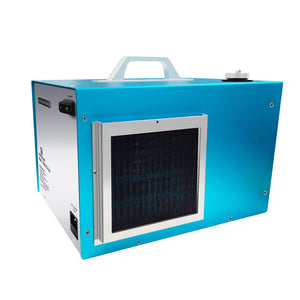

The Compcooler Indoor Refrigeration Chiller Unit (IRCU) is designed for indoor personal cooling applications. IRCU uses a compressor refrigeration system (a.k.a. chiller) to cool liquid in a reservoir.  A pump circulates the cold liquid to a tubing-lined garment and/or cooling pad.  The user’s body heat is absorbed by the liquid and returned back to the chiller unit to be cooled again.  This process continues in a closed loop as long as the system is powered ‘On’.

IRCU is powered by a 110V or 220V wall plug and delivers 400W of cooling capacity.  Temperature control is -9°C to 30°C (16°F to 86°F) with an accuracy of +/-1°C (2°F). The system is programmable and will automatically operate at the user’s preferred temperature set point.  The set point can be adjusted using the control panel on the chiller housing.   The user may pre-cool the unit to achieve the coldest liquid needed.





Components List:



Item

Part number

Description

Quantity

1

COMP-IRCU-110400

Indoor Refrigeration Chiller Unit AC110V

1

Power Cord US type

1

2

COMP-ET15M

Extension Tubing 1.5 meters with soft sleeve

1

3



Operation Manual

1



Chiller Unit Technical Datasheet

COMP-IRCU-110400

Cooling Capacity (Ambient Temp. 40℃)

W

400

Cooling Capacity (Ambient Temp. 104℉)

Btu

1364

Max Cooling Capacity

W

600

Power Supply

V AC

110 or 220

Operation Current

A

1-2

Max Current

A

3

Max Power Consumption

W

250

Refrigerant

Type



R134a

Compressor Operation

ON/OFF

Temp Control

°C (°F)

-9 to 30 (16 to 86)

Coolant

Anti-freeze liquid



Yes

Rotary Compressor

Qty

PC

1

Voltage

V AC

110 or 220

Discharge

CC

3.0

Fan

Qty

PC

2

Voltage

V AC

110 or 220

Air Flow

CFM

45

Pump

Voltage

V DC

24

Water flow

L/Min

5

Lift

M

5

Power Connector

Type



3PIN

Operation Ambient

Max

°C (°F)

45 (113)

Storage Temp



°C (°F)

-20 to 70 (-4 to 158)

Noise

Max

dBA

48

Color



Light Blue

Dimension

L x W x H

MM

374x238x243

Inch

14.71x9.37x9.59

Weight

KGS (LBS)

11 (24.2)
