Liquid Heating Pad & Blanket System
Model: COMP-LHPS-12240
Operation Manual for Indoor Liquid Heating Unit
COMPCOOLER Liquid Heating Pad & Blanket System (LHPS) is an active heating unit powered by AC110 or AC220 wall plug. LHPS is made up of Indoor Liquid heating unit, liquid heating pad/blanket and Extension tubing. Liquid heating unit delivers 240W heating capacity to warm the liquid, temperature setting 30℃-48℃ (86℉-120℉), LHU pumps heated water to heating channel embedded on pad/blanket and continuously flow, once the circulation liquid reaches to set point temperature, system intellectually control the heating capacity to that temperature. User may expect more comfortable body warming from the liquid heating pad if compare with electric heating pad or blanket.
Benefits:
Quality sleep every night, perfect physical recovery
Reduces the Risk of Hypothermia, Maintains Body Core Temperature
Reduces the Cold stress and Cold injuries, protect Vital organs
Recover vital signs, Rescue the life in cold conditions
Components List:
|
Item |
Part number |
Description |
Quantity |
|
1 |
COMP-ILHU-12240 |
Indoor Liquid Heating Unit |
1 |
|
2 |
COMP-ET5FT-S |
Extension Tubing 2 meter (6ft) with soft cover |
1 |
|
3 |
COMP-PCAC-US |
Power Cord US type |
1 |
|
4 |
COMP-HCP-XXXX |
Liquid Heating & Cooling Pad/Blanket |
1 |
|
5 |
|
Operation Manual |
1 |

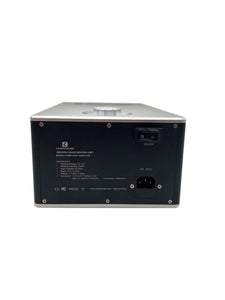

Technical Datasheet for Indoor Liquid Heating Unit
|
Heating Capacity (Ambient Temp. 30℃) |
W |
240 |
|
|
Heating Unit Voltage |
V DC |
12 |
|
|
Operation Voltage |
V AC |
110 or 220 |
|
|
Built-in Power supply |
W |
350 |
|
|
Power Connector |
Type |
3 Pins |
|
|
Power Consumption |
W |
250 |
|
|
Temp Control |
℃ |
30 to 48 |
|
|
℉ |
86 to 120 |
||
|
Accuracy |
+/-℃ |
1 |
|
|
Reservoir |
ml |
800 |
|
|
Pump |
Voltage |
V DC |
12 |
|
Water flow |
L/Min |
5 |
|
|
Lift |
M |
5 |
|
|
Circulation Liquid |
Antifreeze |
℃ |
-20 |
|
Mixture |
70%water and 30% Glycol |
||
|
|
|
|
|
|
Operation Ambient |
℃ |
-20 to 50 |
|
|
Storage Temp |
|
℃ |
-30 to 70 |
|
Protection for Heating Unit |
Overheating for Heating rod |
≥80℃ |
Yes |
|
Overheating for liquid 10 ℃ more than setting |
≥10℃ |
Yes |
|
|
Liquid Level |
|
Yes |
|
|
Noise |
Max |
dBA |
40 |
|
Color |
|
Silver Black |
|
|
Dimension |
L x W x H |
mm |
288x196x120 |
|
Inch |
11.4x7.7x4.7 |
||
|
Weight |
KGS |
3.5 |
|
|
LBS |
7.7 |
||
Specification

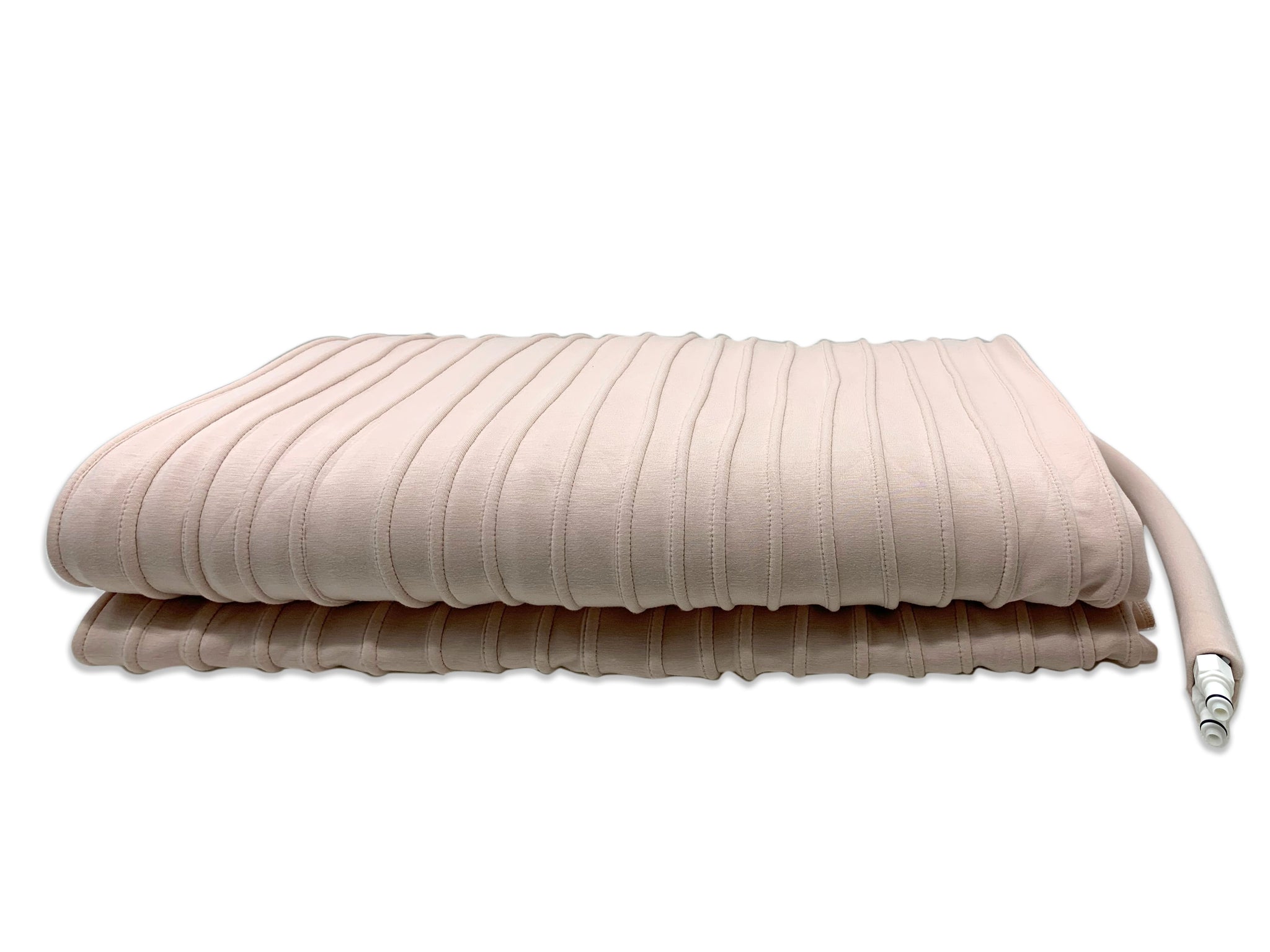

Liquid Circulation Heating Pad & Blanket
Fabric Material: Modal Cotton wrinkle free Scuba
85% Poly 15%Spandex
Color: Pink or White
Tubing Material: Silicon
Manifold fitting: Aluminum
Connector: Quick Fitting
Weight:2kg
Size: Single, Full, King
Liquid Heating Pad
|
Item |
Part number |
Description |
Quantity |
|
1 |
COMP-HCP-S6038 |
Single size liquid Heating & Cooling Blanket 60”x38” (1524x990mm) |
1 |
|
2 |
COMP-HCP-F5475 |
Full size liquid Heating & Cooling Pad 54”x75” (1905x1372mm) |
1 |
|
3 |

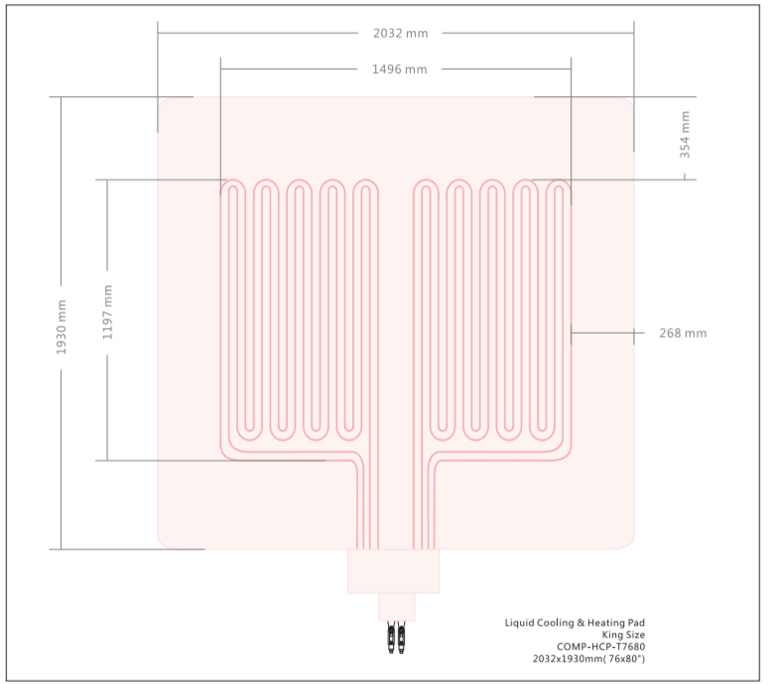

COMP-HCP-K7680 |
King size liquid Heating & Cooling Pad 76”x80” (2032x1930mm) |
1 |
