Handcarry Liquid Heating Unit

Model: COMP-HLHU-12100

COMPCOOLER Handcarry Liquid Heating Unit (HLHU) is an active heating unit to keep your body warming in outdoor cold environment and indoor without heating device. HLHU includes 12V Compact Liquid Heating Unit (CLHU), handcarry pack, 3ft extension tubing and power cord. Liquid heating unit delivers 100W heating capacity to warm the liquid, temperature setting 30℃-48℃ (86℉-120℉), CLHU pumps heated water to heating channel embedded on garment and continuously flow around the body, once the circulation liquid reaches to set point temperature, system intellectually control the heating capacity to that temperature. DC 12V battery or vehicle power operated. User may expect more comfortable full body warming from the liquid heating garment if compare with electric heating pad clothing.

Benefits:

Reduces the Risk of Hypothermia, Maintains Body Core Temperature

Reduces the Cold stress and Cold injuries, protect Vital organs

Thermal Comfort, Reduces Clothing layers, Free Body Movement

Recover vital signs, Rescue the life in cold conditions

Maintain cognitive skill, enhance operational effectiveness



Components List:

Item

Part number

Description

Quantity

1

COMP-LHU-12100

Compact Liquid Heating Unit

1

Handcarry Pack

1

2

COMP-ET1M

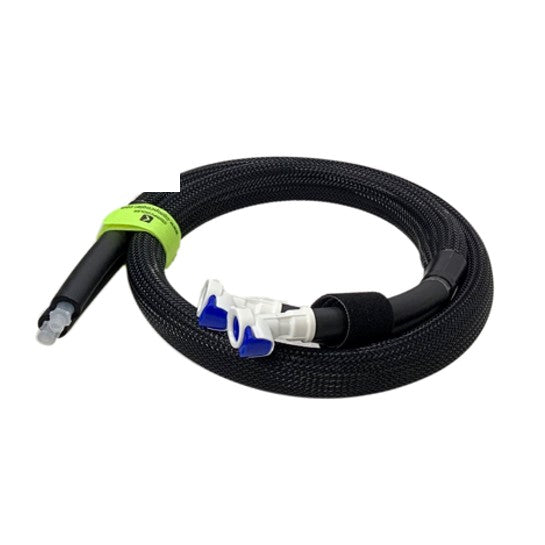

Extension Tubing 1 meter (3ft)

1

3

COMP-PCDC-12EC5

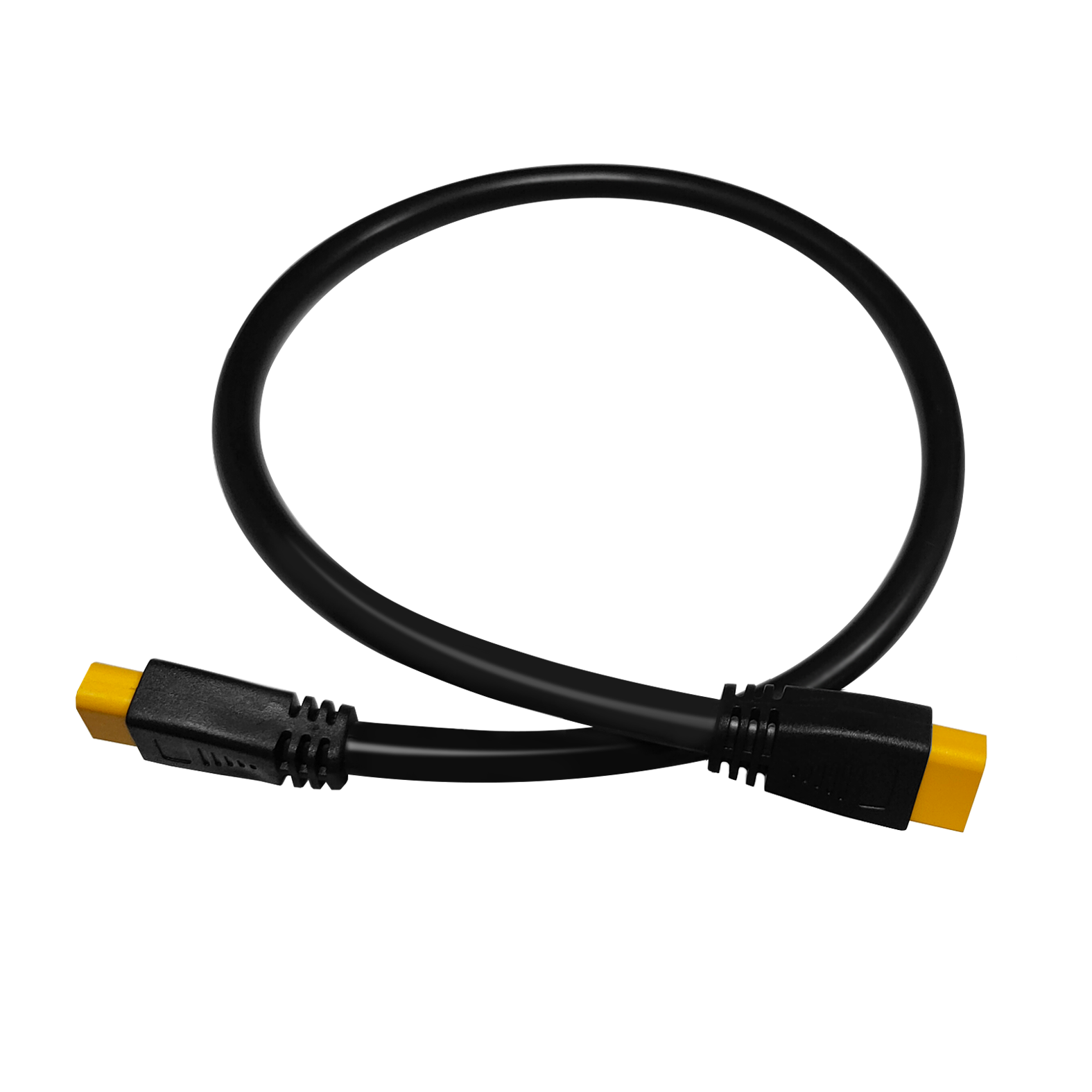

Power Cord with EC5 connector

1

4



Operation Manual

1



Technical Datasheet for Compact Liquid Heating Unit





Heating Capacity (Ambient Temp. 30℃)

W

120

Operation Voltage

V DC

11-16

Operation Current

A

10

Max Current

A

13

Max Power Consumption

W

150

Temp Control

30 to 48

86 to 120

Accuracy

+/-℃

1

Reservoir

ml

200

Pump

Voltage

V DC

12

Water flow

L/Min

1

Lift

M

2

Circulation Liquid

Antifreeze

-50

Mixture

50%water and 50% Glycol

Power Connector

Type

DC

EC5

Operation Ambient

-20 to 50

Storage Temp



-30 to 70

Protection for Heating Unit

Low Voltage

≤11

Yes

High Voltage

≥18

Yes

Wrong Polarity connection



Yes

Overheating for Heating rod

≥80℃

Yes

Liquid Level



Yes

Noise

Max

dBA

38

Color



Red Black

Dimension

L x W x H

mm

158x116x67

Inch

6.2x4.6x2.6

Weight

KGS

1.2

LBS

2.6
