Regular price
$249.00
Sale price
$249.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

COMPCOOLER Waistpack ICE Water Cooling System includes Mesh Liquid Cooling Vest and Self-Contained Waistpack Circulation Unit with 1.5L Detachable Bladder and 7.4V Rechargeable Battery

Model No.: COMP-BWCS-7415V-NF

Operation Manual for Waistpack ICE Water Cooling System

Operation Manual for Single Chamber ICE Bladder

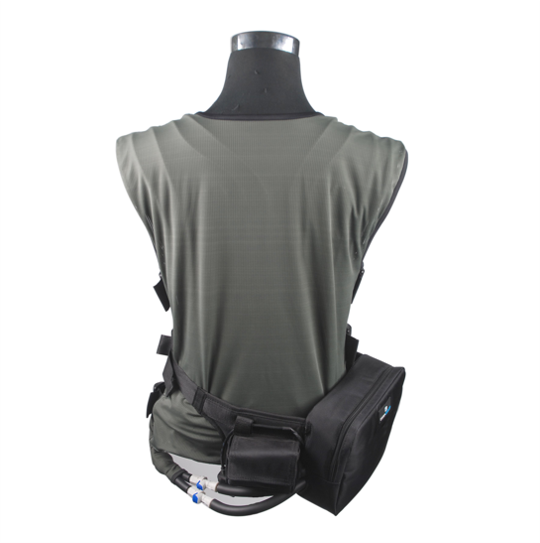

The Compcooler Waistpack Ice Cooling System combines a tubing-lined vest with a liquid cooling system housed in a detachable waistpack to form a self-contained and convenient thermal regulation device.

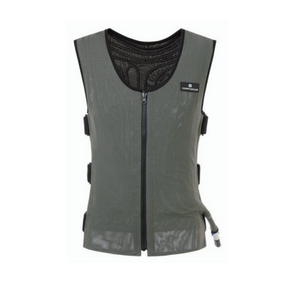

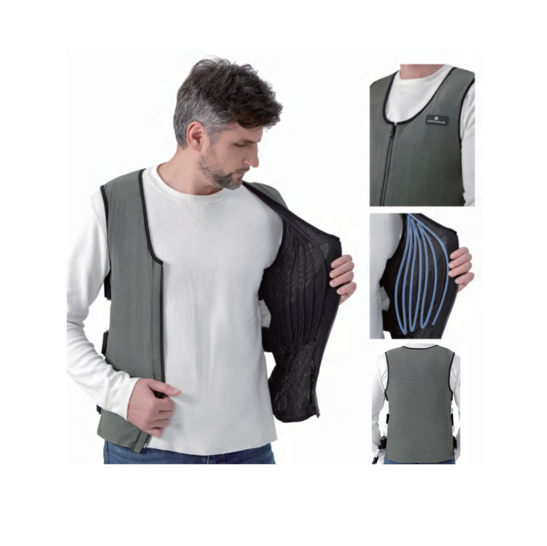

The vest is a highly engineered breathable mesh garment that weighs a mere 0.5KG (1.1 lbs.), dry weight.  It consists of a soft mesh outer fabric and inner liner which is easy to don and comfortable to wear against the body.  A zipper and adjustable tabs provide a snug fit for maximum thermal transfer.  The liquid cooling system is a detachable waistpack that weighs 1.5KG (3.3 lbs.), dry weight.  It contains a 1.5-liter removable water bladder, circulation pump, rechargeable battery, and On/Off switch.  When operating, it’s audible output is 45dBA.

Cooling energy is provided by freezing the water in the bladder.  This is easily accomplished by removing the bladder from the system using quick-connect fittings, and then placing the bladder in a freezer.  Once frozen, the bladder is easily re-attached to the system using the quick-connect fittings. With a charged battery pack, Users turn the switch on and the pump circulates cold water in a continuous loop between the bladder and vest.  With the included 1.5-liter bladder, Users can expect a cooling duration anywhere from 1 to 2 hours depending on ambient temperatures and workload.  Additional bladders and battery packs can be purchased for prolonged cooling.

Components List

COMP-BWCS-7415NF (On/Off Operation)

Item

Description

Quantity

1

Liquid cooling vest

1



Waistpack Circulation System:



2

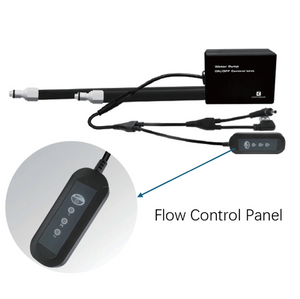

·        Water pump, simple ON/OFF operation

1

3

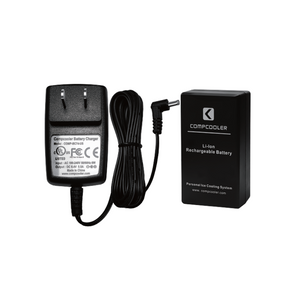

·        Battery 7.4V 2200mAh

1

4

·        1.5L Bladder

1

5

Battery charger 110-220V

1

6

Manual

1



Key Features

The 1.5-liter water/ice bladder, rechargeable battery and miniature pump within the waist make this a self-contained and portable cooling system. Small size and light weight, perfect for those hot jobs where freedom of movement is necessary, or under PPE application.



Circulates 36°F-68°F (2℃ – 20℃) cooled water to four zones on a tubing-lined liquid cooling vest. Reduce core body temperature and the incidence of thermal stress while increasing comfort, safety, focus and endurance.



The 1.5-liter water/ice bladder is easily detached with quick-connect fittings, filled with water and frozen.  This serves as the cold energy source, providing 1-2 hours of cooling performance.



Breathable, zippered, tubing-lined garment is comfortable to wear against the skin. Velcro adjustment tabs provide a snug fit, ensuring maximum thermal transfer.



Additional bladders and batteries can be purchased and used for prolonged cooling periods. This water-based cooling system is both safe to use and environmentally friendly.

Performance:

Combined Vest and Waistpack

  • Cooling time:
    • 1-2 hours with 3.0L frozen bladder
    • 0.5-1 hours with ice cubes
  • Circulation: 500ml/min
  • Temperature range: 2° - 10°C (36 - 50°F )
  • Operation ambient: 0 - 60℃ (32 - 140℉)

Rechargeable battery, 7.4V 2.2A

  • Battery life: 8 hours
  • Charging time: 3-5 hours

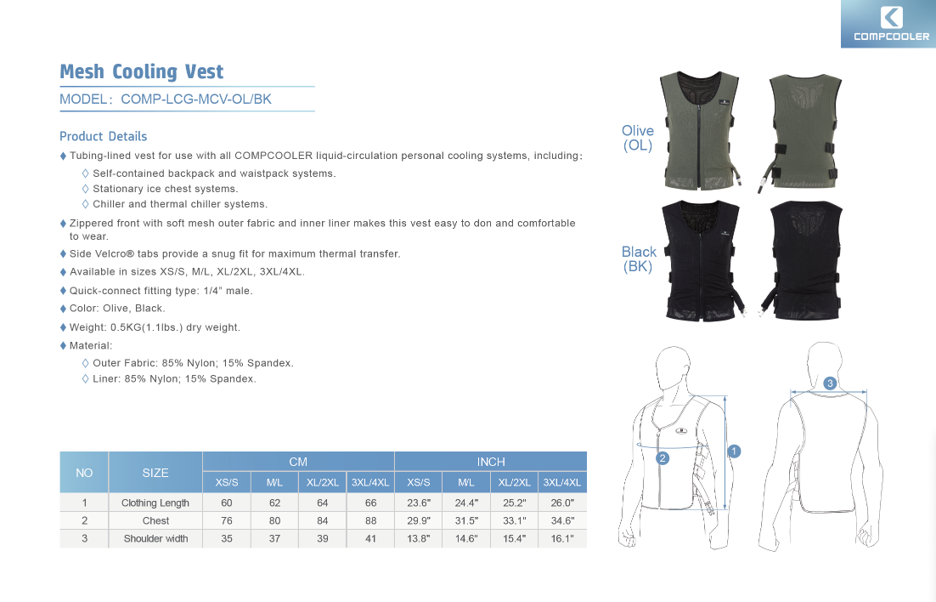

Garment Sizes

Garment can expand 15% (max 15cm/6”) with adjustable tabs.

Feature

XS/S

M/L

XL/XXL

3XL/4XL

Chest

84cm/33.1”

100cm/39.4”

108cm/42.5”

126cm/49.6”

Length

64cm/25.2”

68cm/26.8”

70cm/27.6”

73cm/28.8”
