COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
Double Backpack ICE Water Cooling System
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Double Backpack ICE Water Cooling System with two 3.0 L detachable bladders ON/OFF Mode
COMPCOOLER Double Backpack ICE Water Cooling System with two 3.0 L detachable bladders ON/OFF Mode
COMPCOOLER Double Backpack ICE Water Cooling System
Double Backpack ICE Water Cooling System with two 3.0 L
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode
COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode

COMPCOOLER Dual Backpack ICE Water Cooling System 5.0 L Bladder ON/OFF Mode

Regular price
$299.00
Sale price
$299.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

COMPCOOLER Dual Backpack ICE Water Cooling System ON/OFF Mode

Model COMP-DBCS-7450V-NF

Operation Manual for Backpack ICE Water Cooling System

Operation Manual for Single Chamber Quick Release Bladder

Smart, safety-conscious motorcyclist’s wear protective clothing, like leather, and during the warmer months of the year that can get uncomfortably hot.  That’s where Compcooler can help with its cooling system specifically designed for motorcyclists.  The system combines a tubing-lined vest with a liquid cooling system housed in a dual backpack to form a self-contained and convenient thermal regulation device. Available in sizes XS/S, M/L, L/2XL, 3XL/4XL, the vest is a highly engineered breathable mesh garment that weighs a mere 0.5KG (1.1 lbs.), dry weight. It consists of a soft mesh outer fabric and inner liner which is easy to don and comfortable to wear against the body.  The liquid cooling system is contained in a backpack that weighs 1.8KG (4.0 lbs.), dry weight.  It includes a 5.0-liter removable water/ice bladder, miniature circulation pump, 7.4V 2200mAh rechargeable battery, and On/Off switch.  When operating, it’s audible output is 45dBA.  Cooling energy is provided by removing the bladder from the system, filling it with water and placing it in a freezer.  Once frozen, the bladder is easily re-attached to the system, and with a charged battery pack, Users turn the switch ‘On’ and the pump circulates cold water in a continuous loop between the bladder and vest. Depending on ambient temperatures and workload, Users can expect a cooling duration anywhere from 4 to 6 hours with a fully frozen bladder or 2 to 4 hours using ice cubes in the bladder.  The battery can last up to 10 hours.  Additional bladders and battery packs can be purchased for prolonged cooling. Ice cubes can also be used for prolonged cooling, although the cooling time will be lessened.

Key Features



Stay cool, comfortable, and focused when riding on those hot summer days. Cooling energy comes from freezing the removable 5.0-liter ice bladder or ice cubes.  Expect 4 to 6 hours of cooling performance depending on ambient conditions and user workload.



The 5.0-liter water/ice bladder, rechargeable battery and miniature pump within the dual chambers backpack make this a self-contained and portable cooling system. Perfect for those hot jobs where freedom of movement is necessary and long cooling time is need.



Dual backpack circulation cooling unit connects the liquid cooling vest with tubing, turn switch “on” and pump circulates 36°F-68°F (2C – 20C) cooled water in a continuous loop between the bladder and vest. The 5.0-liter water/ice bladder is easily detached with quick-connect fittings, filled with water and frozen.



Breathable, zippered, tubing-lined Mesh liquid cooling vest is comfortable to wear against the skin. Velcro adjustment tabs provide a snug fit, ensuring maximum thermal transfer. Reduce core body temperature and the incidence of thermal stress while increasing comfort, safety, focus and endurance.



Additional bladders and batteries can be purchased and used for prolonged cooling periods. This water-based cooling system is both safe to use and environmentally friendly.

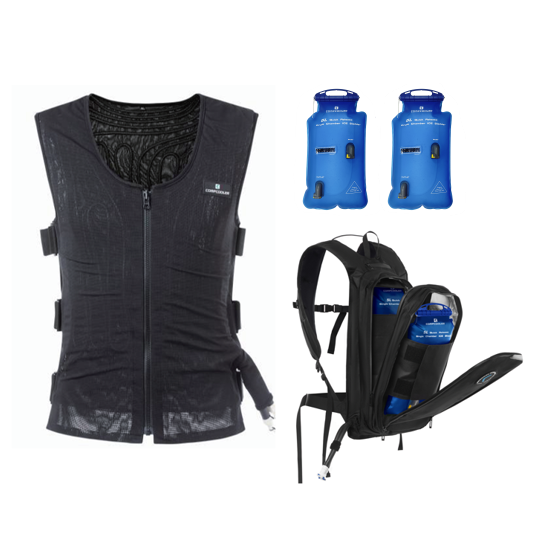

Component List:

Dual Backpack Circulation Unit (1)

Pump ON/OFF (1)

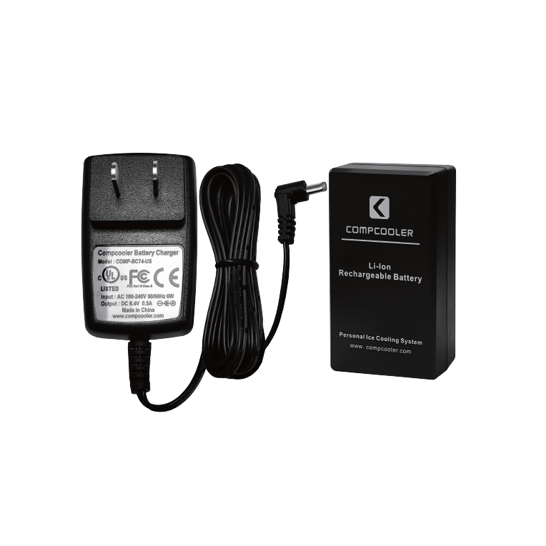

Battery 7.4V 2200mAh (1)

Battery Charger (1)

5.0L Detachable Bladder (1)

Liquid Cooling Vest (1)



Backpack ICE Water Circulation Unit

Specifications

Backpack: Black Oxford with reflective insulation material

Bladder: 5.0L Quick release bladder

Pump: 7.4V diaphragm pump

Connector: CPC female Quick fitting

Pump: ON/OFF control mode

Water flow: 500ml/min

Battery: 7.4V 2200mAh rechargeable Li-Ion battery

Noise: 45dBA

Dry weight: 1KG

Liquid Cooling Vest

Specifications

Material: Soft Stretch Mesh

Color: Black Outer and black liner

Cooling Channel: Silicon micro tubing

Zipper: YKK reversible zipper

Adjustable device: stretch body fit strap

Fitting: CPC male quick fitting

Dry weight: 0.5kg

Size: XS/S, M/L, XL/2XL, 3XL/4XL



Cooling performance:

Cooling time: 4-6 hours by 5.0L frozen bladder,

                     2-4 hours by ICE Cubes

Temperature Range: 36°F-68°F (2℃-20℃)

Battery Operated: 8 hours

Operation Ambient: 0℃-60℃ (32℉-140℉)

 Garment Size:

Item

XS/S

M/L

XL/XXL

3XL/4XL

Chest

84cm/33.1”

100cm/39.4”

108cm/42.5”

126cm/49.6”

Length

64cm/25.2”

68cm/26.8”

70cm/27.6”

73cm/28.8”

Note: Garment size has 30% expansion by stretch fabric (10cm/4”Max) or velcro tab (15cm/6” Max), snug fit provides a maximum thermal transfer.
