Indoor Refrigeration Cooling System
Model: COMP-IRCS-110400V
COMP-MLCV-XX
Operation Manual for Indoor Refrigeration Cooling Unit

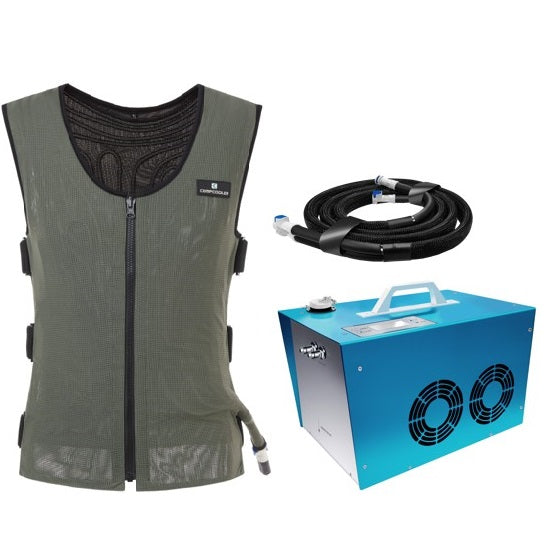

Description: Compcooler Indoor Refrigeration Chiller Unit (IRCU) was designed for indoor cooling application, powered by connect 110V or 220V wall inlet plug. IRCU uses AC compressor refrigeration system to cool the liquid, pump circulates the cold liquid to cooling vest and continuously flow around the body, it will keep user’s body temperature at a comfortable range to against heat stress. IRCU delivers 400W cooling capacity. User can set up the temperature from -5℃ to 30℃ (23℉ to 86℉), main board will control the ON/OFF operation of refrigeration once circulation liquid reaches to set point temperature. User may pre-cool the unit and get the lowest temperature as he needs, iceless cooling unit, maintain free, quiet operation. This model is good for indoor body cooling by connect with cooling garment or cooling pad.
Components List:
|
Item |
Part number |
Description |
Quantity |
|
1 |
COMP-IRCU-110400 |
Indoor Refrigeration Chiller Unit AC110V |
1 |
|
Power Cord US type |
1 |
||
|
2 |
COMP-ET15M |
Extension Tubing 1.5 meters with soft sleeve |
1 |
|
3 |
COMP-MLCV |
Mesh Liquid Cooling Vest |
1 |
Chiller Unit Technical Datasheet
|
Cooling Capacity (Ambient Temp. 40℃) |
W |
400 |
|
|
Cooling Capacity (Ambient Temp. 104℉) |
Btu |
1364 |
|
|
Max Cooling Capacity |
W |
500 |
|
|
Power Supply |
V AC |
110 or 220 |
|
|
Operation Current |
A |
1-2 |
|
|
Max Current |
A |
3 |
|
|
Max Power Consumption |
W |
250 |
|
|
Refrigerant |
Type |
|
R134a |
|
Compressor Operation |
ON/OFF |
||
|
Temp Control |
℃ |
-5 to 30 |
|
|
℉ |
23-86 |
||
|
Coolant |
Anti-freeze liquid |
|
Yes |
|
Rotary Compressor |
Qty |
PC |
1 |
|
Voltage |
V AC |
110 or 220 |
|
|
Discharge |
CC |
3.0 |
|
|
Fan |
Qty |
PC |
2 |
|
Voltage |
V AC |
110 or 220 |
|
|
Air Flow |
CFM |
45 |
|
|
Pump |
Voltage |
V DC |
24 |
|
Water flow |
L/Min |
5 |
|
|
Lift |
M |
5 |
|
|
Power Connector |
Type |
|
3 pins |
|
Operation Ambient |
Max |
℃ |
0 to 45 |
|
Storage Temp |
|
℃ |
-20 to 70 |
|
Noise |
Max |
dBA |
48 |
|
Color |
|
Silver |
|
|
Dimension |
L x W x H |
mm |
375x238x224 |
|
inch |
14.7x9.4x8.8 |
||
|
Weight |
KGS |
11 |
|
|
LBS |
24.2 |
||
Clean for Liquid Heating & Cooling Pad or garment:
Machine wash, wash liquid heating and cooling pad using a front-loading wash machine with cold water on a gentle/delicate cycle, secure the connection tubes to minimize risk of it flailing in the spin cycle and damaging connector and tubing sewing.
