Handcarry Liquid Heating Unit
Model: COMP-HLHU-12100-RB
Operation Manual for Liquid Heating Unit

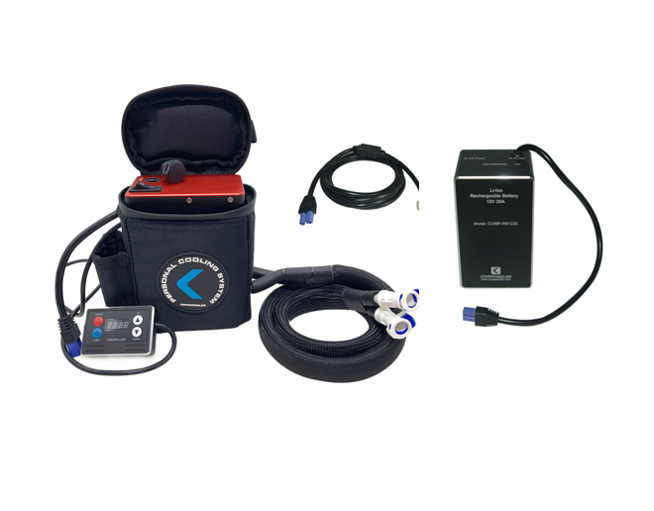

COMPCOOLER Handcarry Liquid Heating Unit (HLHU) is an active heating unit to keep your body warming in outdoor cold environment and indoor without heating device. HLHU includes 12V Compact Liquid Heating Unit (CLHU), handcarry pack, 3ft extension tubing, 12V 240W rechareable battery and power cord. Liquid heating unit delivers 100-150W heating capacity to warm the liquid, temperature setting 30℃-48℃ (86℉-120℉), CLHU pumps heated water to heating channel embedded on garment and continuously flow around the body, once the circulation liquid reaches to set point temperature, system intellectually control the heating capacity to that temperature. DC 12V battery or vehicle power operated. User may expect more comfortable full body warming from the liquid heating garment if compare with electric heating pad clothing.
Benefits:
Reduces the Risk of Hypothermia, Maintains Body Core Temperature
Reduces the Cold stress and Cold injuries, protect Vital organs
Thermal Comfort, Reduces Clothing layers, Free Body Movement
Recover vital signs, Rescue the life in cold conditions
Maintain cognitive skill, enhance operational effectiveness
Components List:
|
Item |
Part number |
Description |
Quantity |
|
1 |

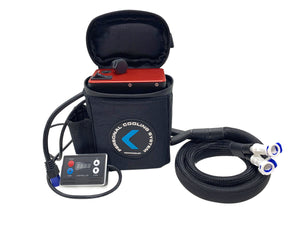

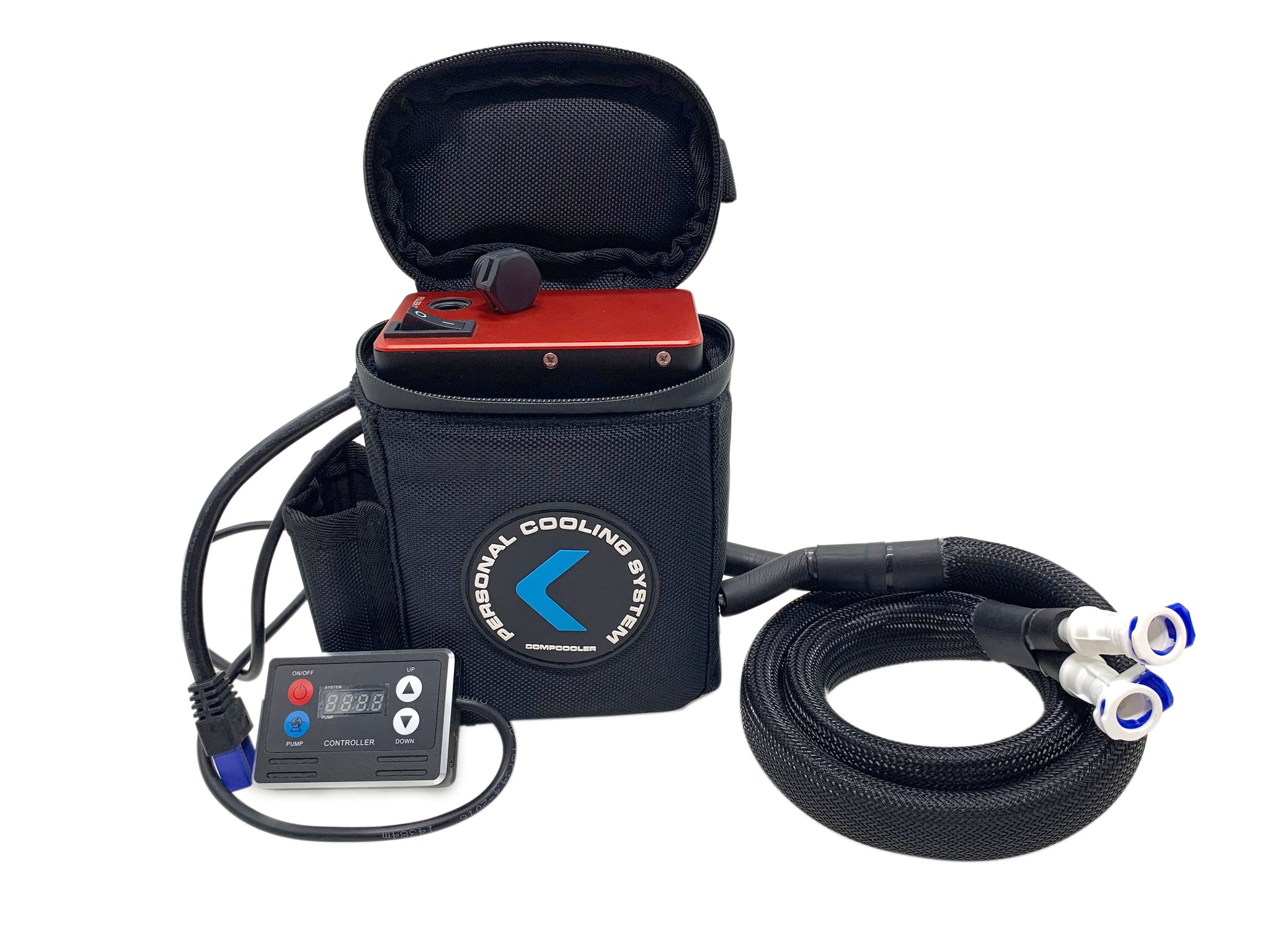

COMP-LHU-12100 |
Compact Liquid Heating Unit |
1 |
|
Handcarry Pack |
1 |
||
|
2 |

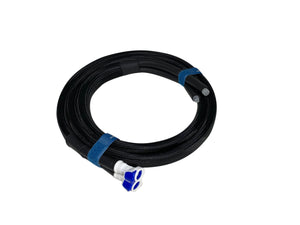

COMP-ET1M |
Extension Tubing 1 meter (3ft) |
1 |
|
3 |

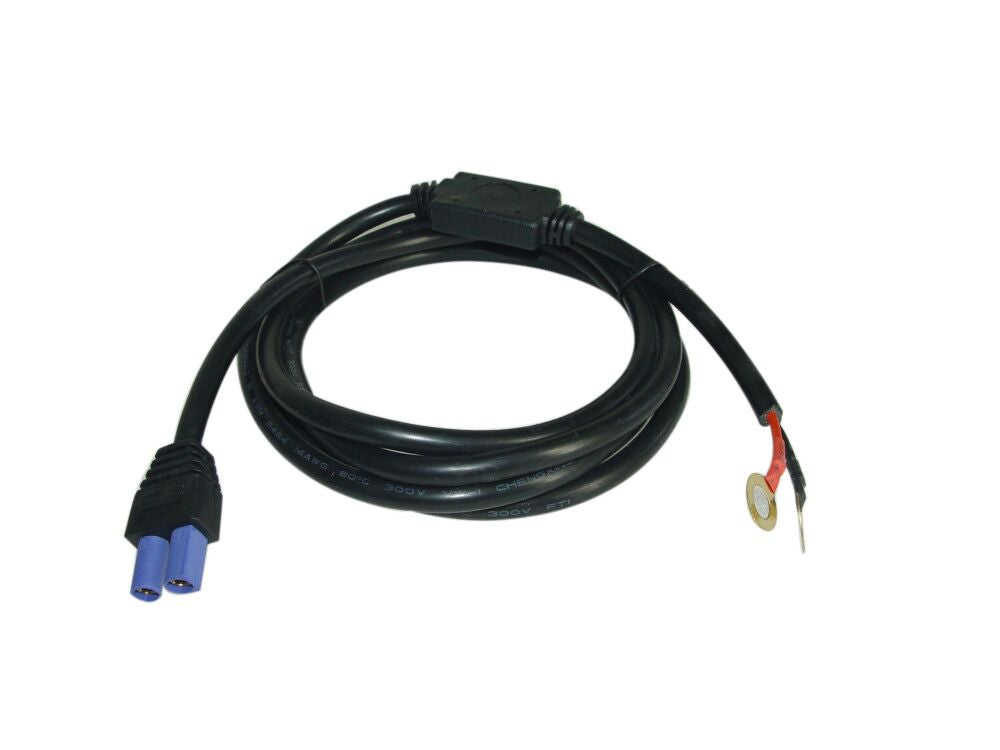

COMP-PCDC-12EC5 |
Power Cord with EC5 connector |
1 |
|
4 |

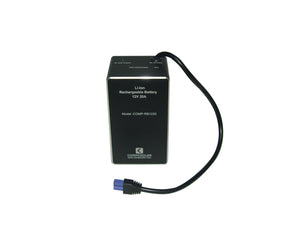

COMP-RB1220 |
Rechargeable battery 12V 240W |
1 |

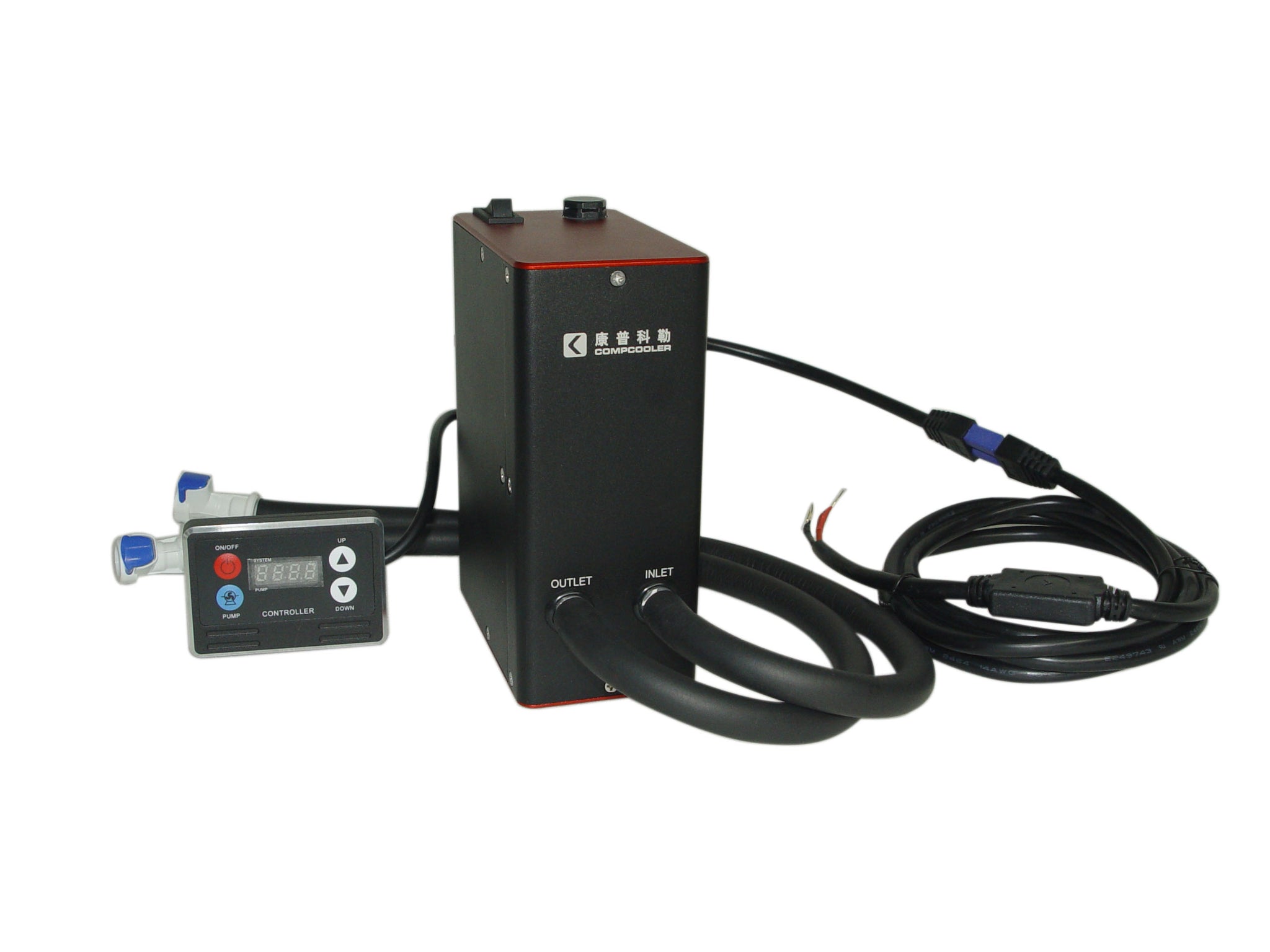

Technical Datasheet for Compact Liquid Heating Unit
|
Heating Capacity (Ambient Temp. 30℃) |
W |
120 |
|
|
Operation Voltage |
V DC |
11-16 |
|
|
Operation Current |
A |
10 |
|
|
Max Current |
A |
13 |
|
|
Max Power Consumption |
W |
150 |
|
|
Temp Control |
℃ |
30 to 48 |
|
|
℉ |
86 to 120 |
||
|
Accuracy |
+/-℃ |
1 |
|
|
Reservoir |
ml |
200 |
|
|
Pump |
Voltage |
V DC |
12 |
|
Water flow |
L/Min |
1 |
|
|
Lift |
M |
2 |
|
|
Circulation Liquid |
Antifreeze |
℃ |
-50 |
|
Mixture |
50%water and 50% Glycol |
||
|
Power Connector |
Type |
DC |
EC5 |
|
Operation Ambient |
℃ |
-20 to 50 |
|
|
Storage Temp |
|
℃ |
-30 to 70 |
|
Protection for Heating Unit |
Low Voltage |
≤11 |
Yes |
|
High Voltage |
≥18 |
Yes |
|
|
Wrong Polarity connection |
|
Yes |
|
|
Overheating for Heating rod |
≥80℃ |
Yes |
|
|
Liquid Level |
|
Yes |
|
|
Noise |
Max |
dBA |
38 |
|
Color |
|
Red Black |
|
|
Dimension |
L x W x H |
mm |
158x116x67 |
|
Inch |
6.2x4.6x2.6 |
||
|
Weight |
KGS |
1.2 |
|
|
LBS |
2.6 |
||
